Dimensional standard for 124″ Diameter U-trough

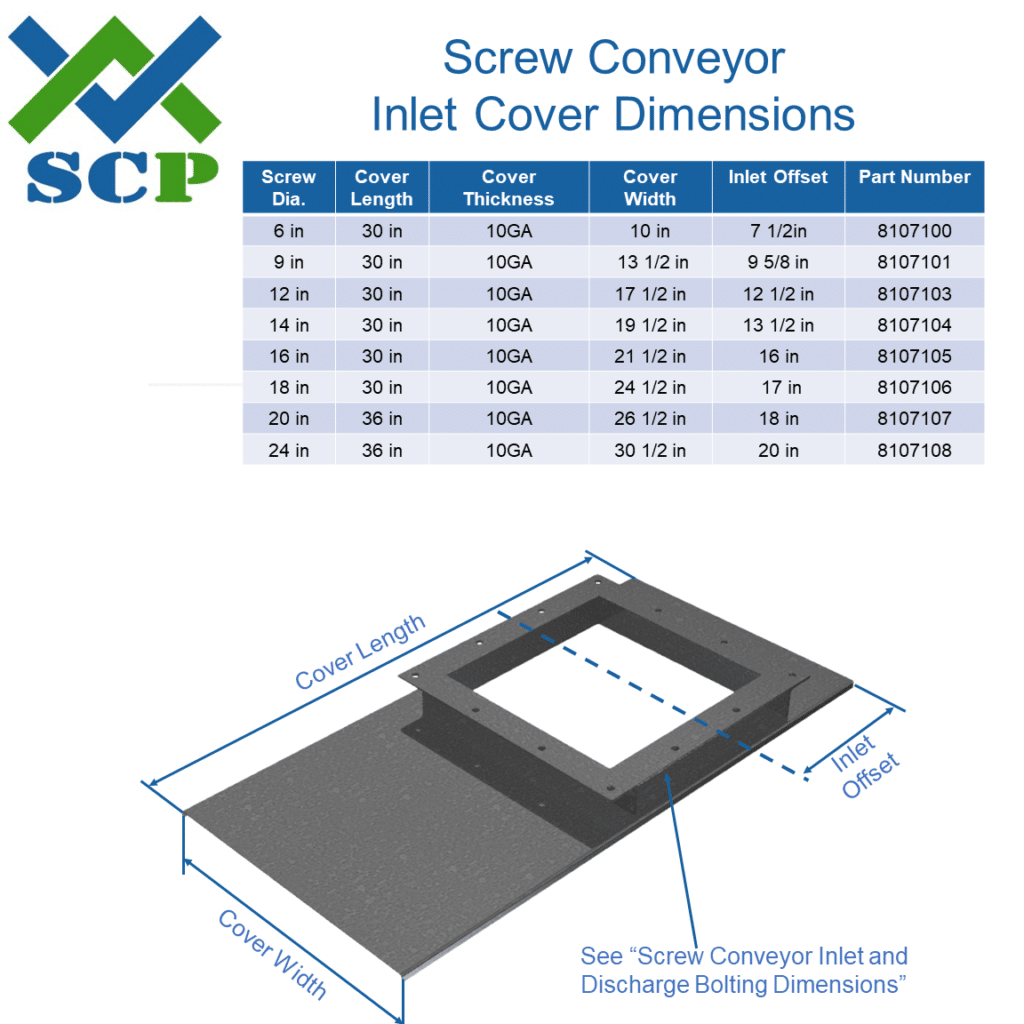

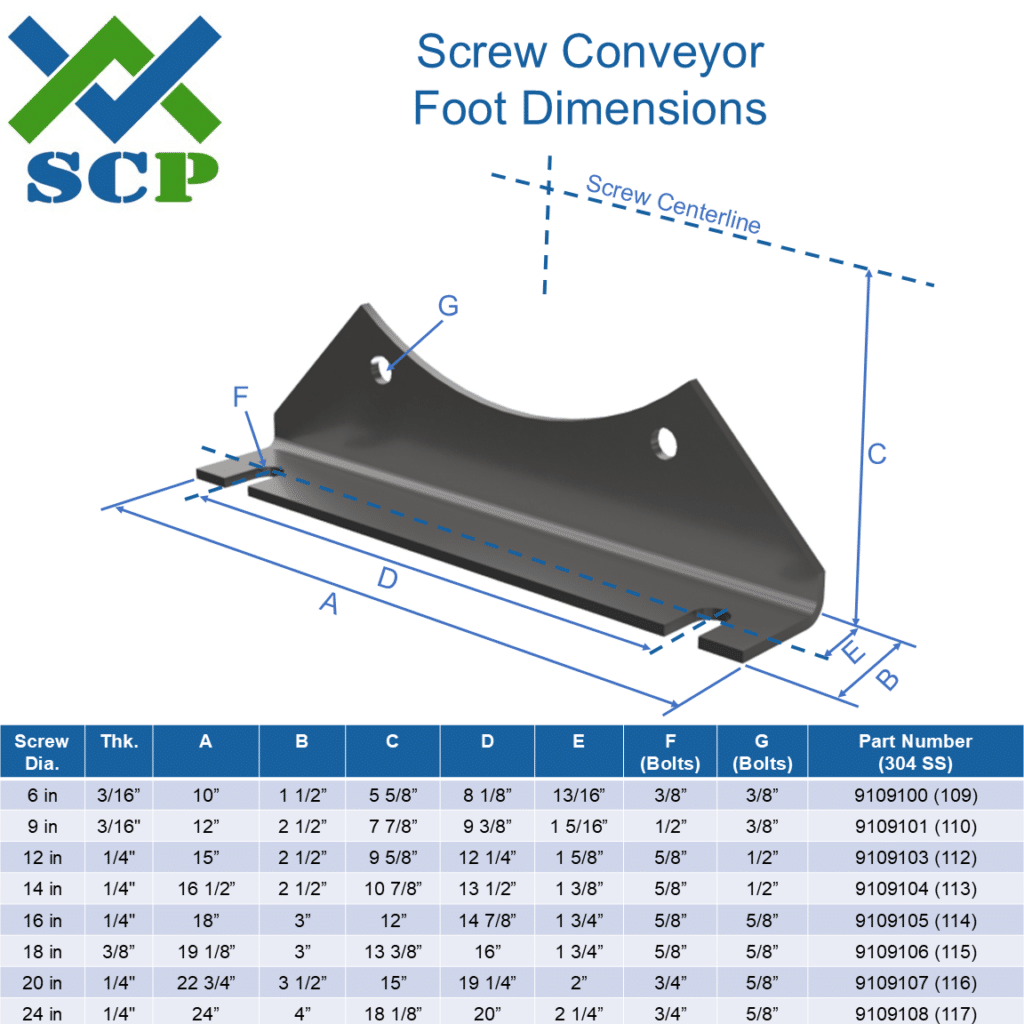

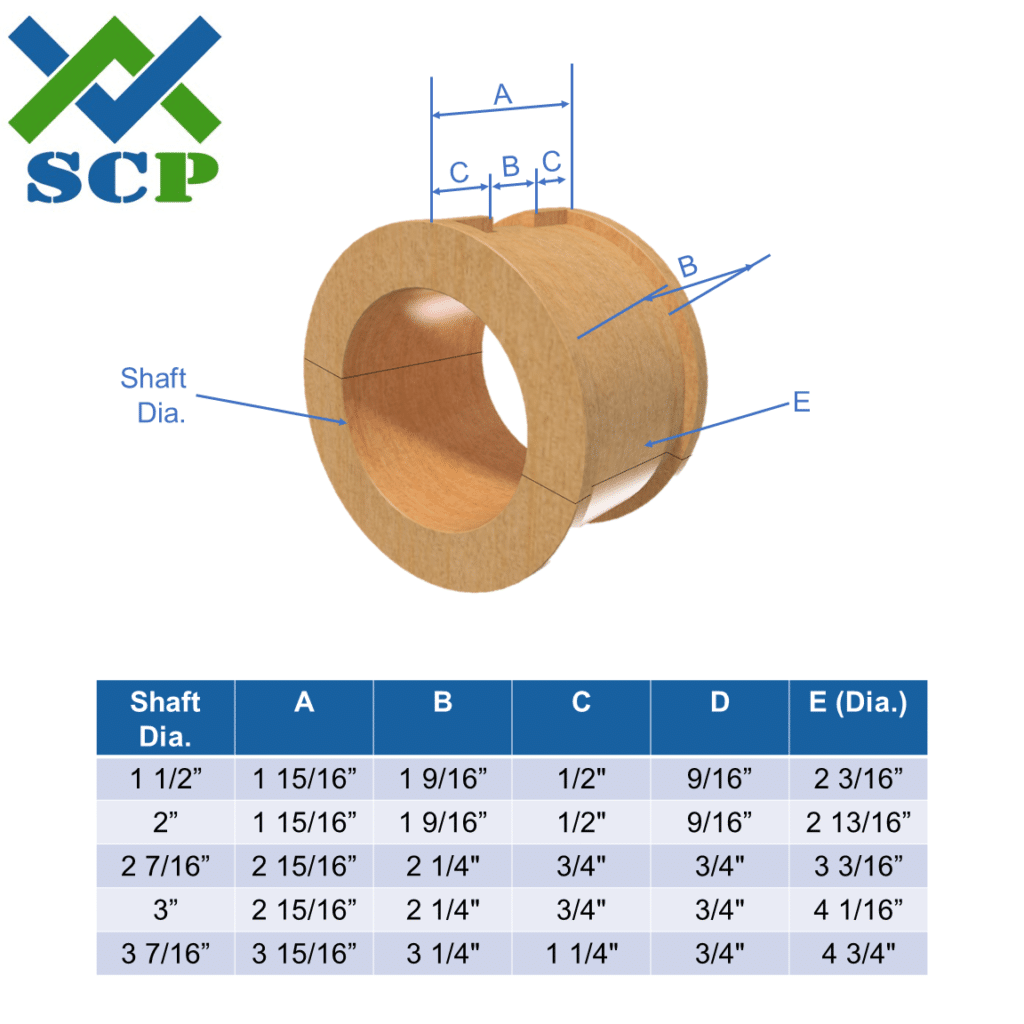

Screw Conveyor Drawings
Dimensional standard for 18″ and 20″ Diameter U-trough
Dimensional standard for 9″, 12″, 14″ and 16″ Diameter U-trough
Dimensional standard for 6″ Diameter U-trough

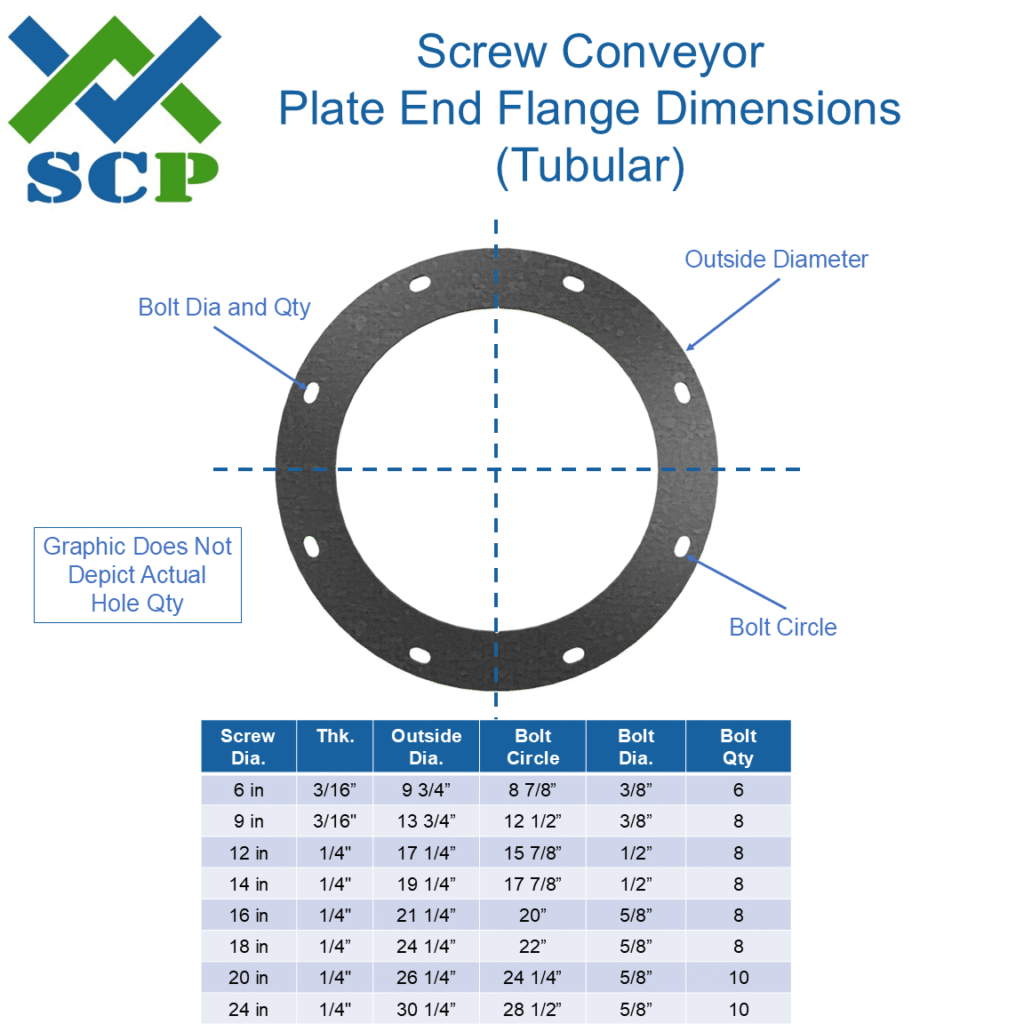

A screw conveyor tubular trough is used to convey product up steep inclines.

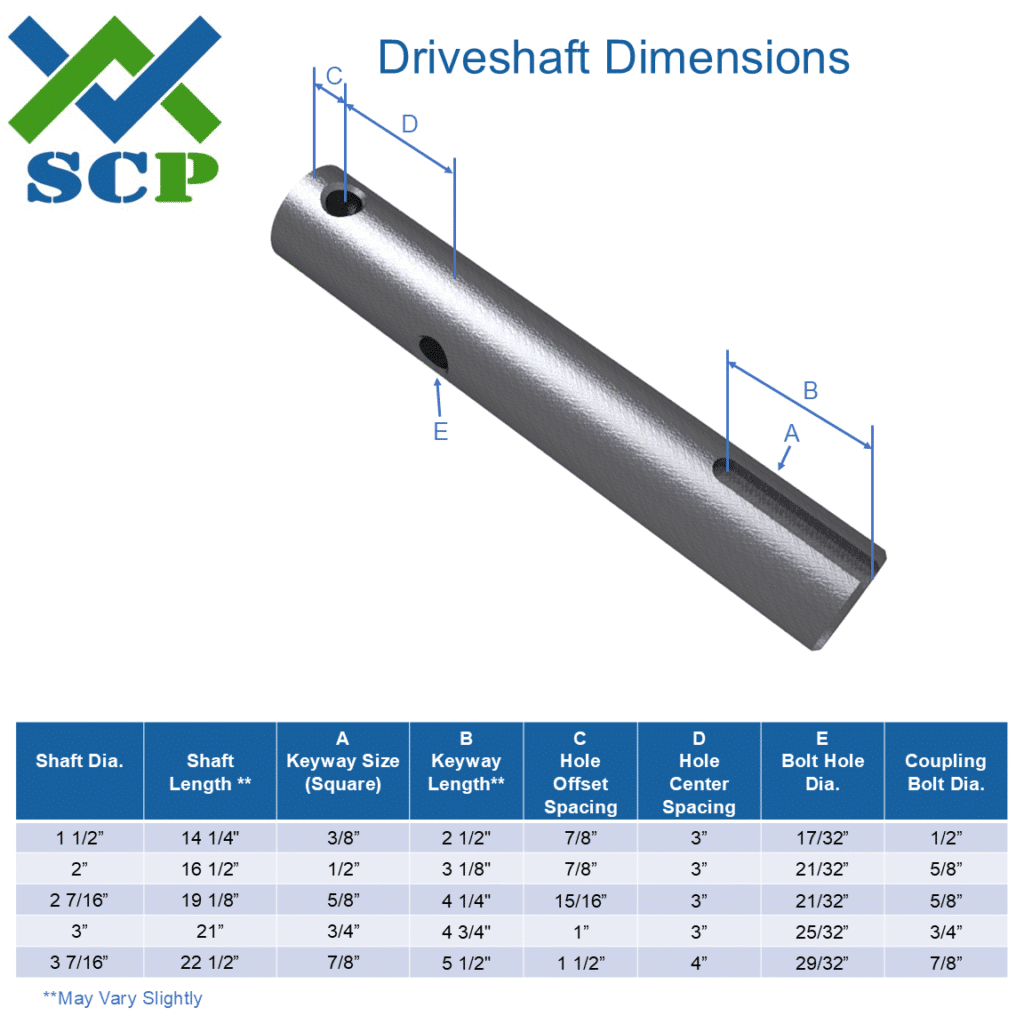

The screw conveyor driveshaft is used to drive the shaft by attaching a sprocket or low speed coupling.
This exploded view of a screw conveyor screw shows all the major components, including the flighting, pipe and bushings.
Screw conveyor plate seal dimensional chart
Screw conveyor waste pack seal dimensional chart
